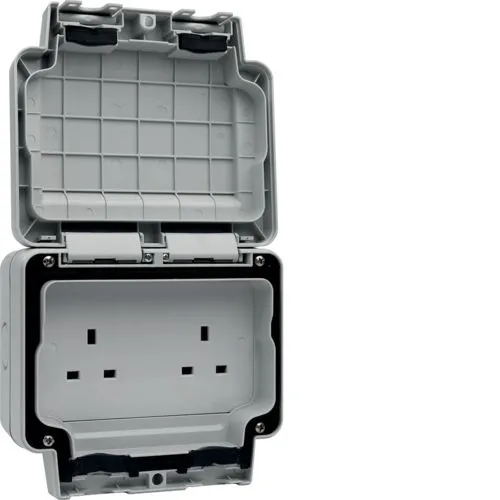

Hager WXPS82 Sollysta Weatherproof IP66 13A 2G Unswitched Socket

• IP66 rating conforms to BS EN 60529 : 1992
• Functional products tested and certified to BS 1363 Part 2, AC only
• Robust and rugged enclosures designed to withstand the elements
• Unique double hinge allows lid to open a full 180 degrees
• Fixing point for padlock
• Cable entries: 103 x 116.5 = 4x20, 1x20 & 1x25

Specification

• Fixing mode: flush-mounting
• Nominal voltage: 250 V
• Rated voltage: 220 230 V
• Rated current: 13A/li>
• Depth: 88.25 mm
• Height: 116.5 mm
• Width: 146 mm
• Full cover plate
• Colour: light grey
• Material: Polycarbonate (PC)
• Type of connection: screw

Data Sheet:
